Use TTCP for performance study of the effect caused by the increase of the TCP receive window buffer size on the receiver side over the transmission time of data sent from a transmitter (Dammam) to the receiver (Dhahran) on a Point to Point serial link. | ||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||

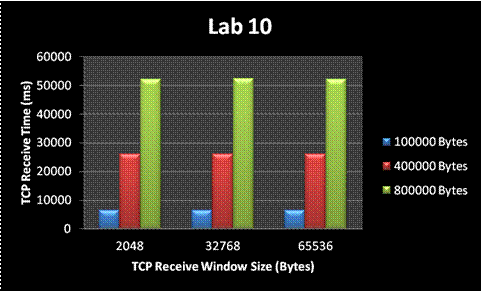

TCP Receive Time (ms) | ||||||||||||||||||||||||||||||||||||||||||||||||
Data (Bytes) | 2048 | 32768 | 65536 | |||||||||||||||||||||||||||||||||||||||||||||
10000 x 10 | 6544 | 6516 | 6512 | |||||||||||||||||||||||||||||||||||||||||||||
40000 x 10 | 26092 | 26152 | 26040 | |||||||||||||||||||||||||||||||||||||||||||||
80000 x 10 | 52152 | 52444 | 52240 | |||||||||||||||||||||||||||||||||||||||||||||

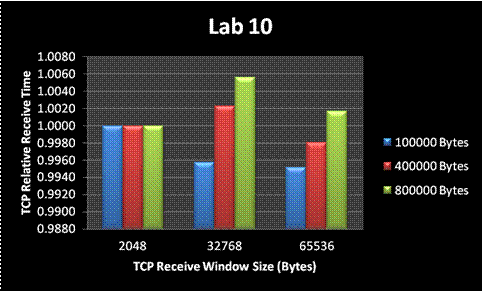

Relative Value | 1.0000 | 0.9957 | 0.9951 | |||||||||||||||||||||||||||||||||||||||||||||
1.0000 | 1.0023 | 0.9980 | ||||||||||||||||||||||||||||||||||||||||||||||
1.0000 | 1.0056 | 1.0017 | ||||||||||||||||||||||||||||||||||||||||||||||

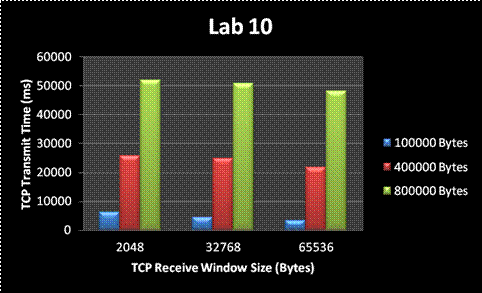

TCP Transmit Time (ms) | ||||||||||||||||||||||||||||||||||||||||||||||||
Data (Bytes) | 2048 | 32768 | 65536 | |||||||||||||||||||||||||||||||||||||||||||||
10000 x 10 | 6352 | 4488 | 3360 | |||||||||||||||||||||||||||||||||||||||||||||
40000 x 10 | 25860 | 24884 | 21876 | |||||||||||||||||||||||||||||||||||||||||||||
80000 x 10 | 51956 | 50852 | 48088 | |||||||||||||||||||||||||||||||||||||||||||||

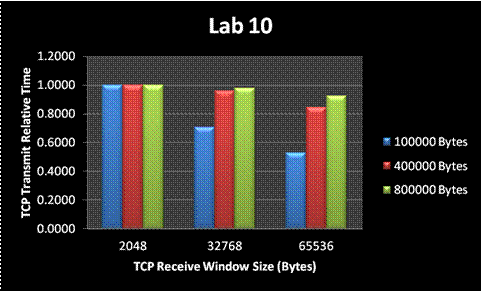

Relative Value | 1.0000 | 0.7065 | 0.5290 | |||||||||||||||||||||||||||||||||||||||||||||
1.0000 | 0.9623 | 0.8459 | ||||||||||||||||||||||||||||||||||||||||||||||
1.0000 | 0.9788 | 0.9256 | ||||||||||||||||||||||||||||||||||||||||||||||
